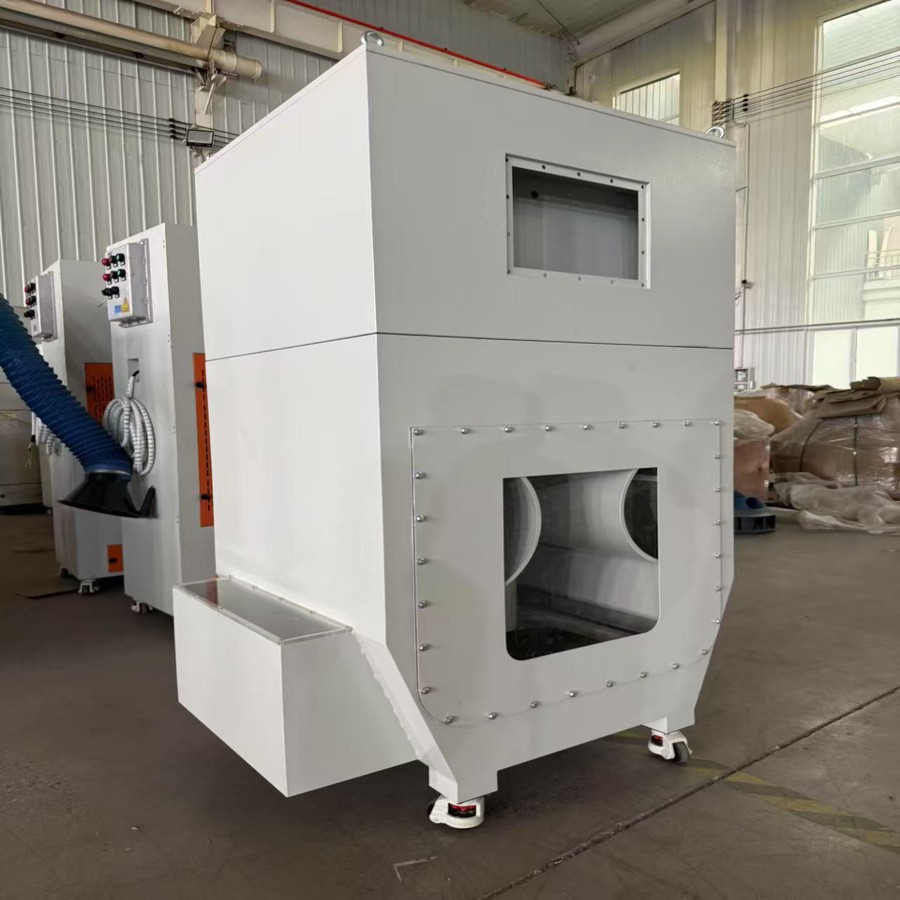

Pumpless wet dust collector

As the professional manufacturer, SRD would like to provide you high quality pumpless wet dust collectors, which is a high-efficiency dust removal equipment built based on many years of experience in the production of, and can be widely used in many fields. It is an advanced and durable wet dust removal equipment. Become one of the most trusted Chinese Wet filter suppliers. Feel free to contact us!

A Wet purifier is a device that uses the interaction between airflow and water to achieve dust removal.

- Working Principle

After the dust-laden airflow enters the pumpless wet dust collector, it passes through a stationary impeller blade partially immersed in water or impacts the water surface to produce a water curtain.

The impact of the airflow causes the water to form fine water droplets and water film, providing good conditions for the contact between dust and water.

When the dust-laden airflow passes through the water curtain, the dust particles collide, intercept, and diffuse with the water droplets, and are thus captured by the water droplets.

At the same time, the rapid change in the direction of the airflow generates centrifugal force, which makes it easier for the dust to penetrate the water curtain and be captured by the water under the action of centrifugal force.

The water droplets carrying dust are separated from the airflow under the action of gravity, centrifugal force, etc., and fall into the water tank at the bottom of the Industrial dust wet filter.

The purified air passes through devices such as demisting baffles to further remove the tiny water droplets carried therein, and then is discharged from the Cyclone wet dust collection system.
